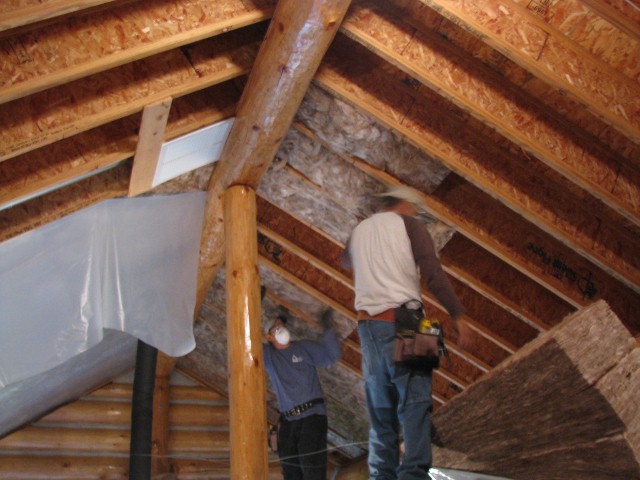

10/20/10 Jesus and Jimmy, the insulators from Gale

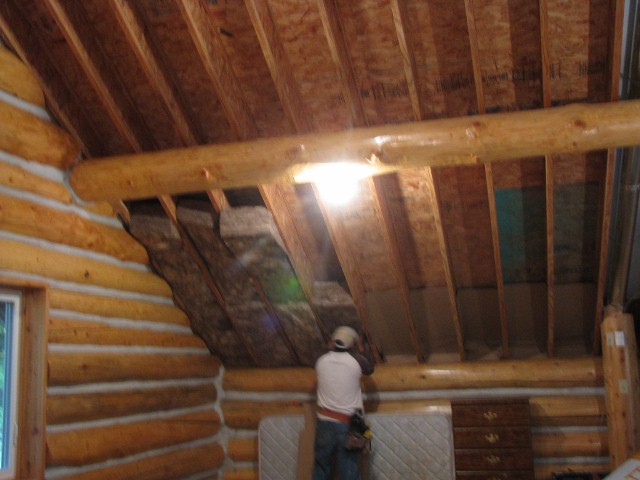

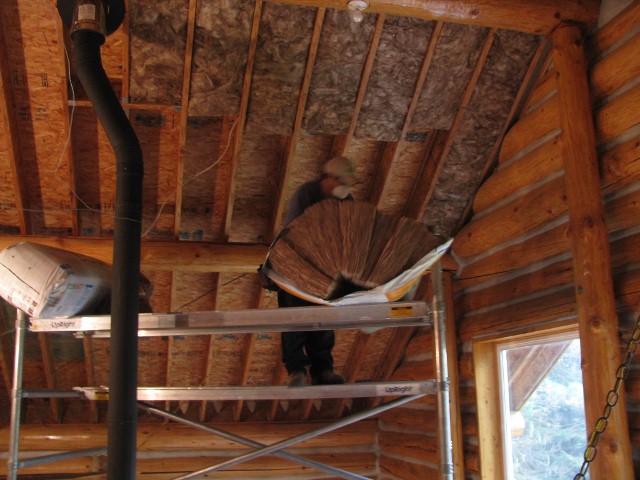

10/20/10 Jesus starting to place insulation at the peak of the cabin ceiling


10/20/10 Jesus opening a new bundle of insulation

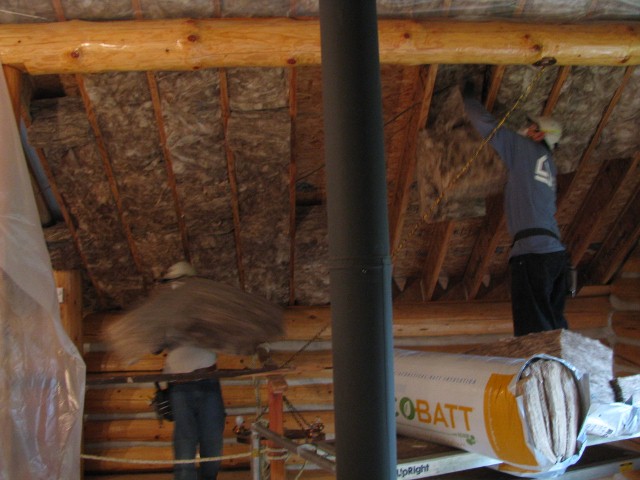

10/20/10 Jimmy placing baffles and batts in the loft

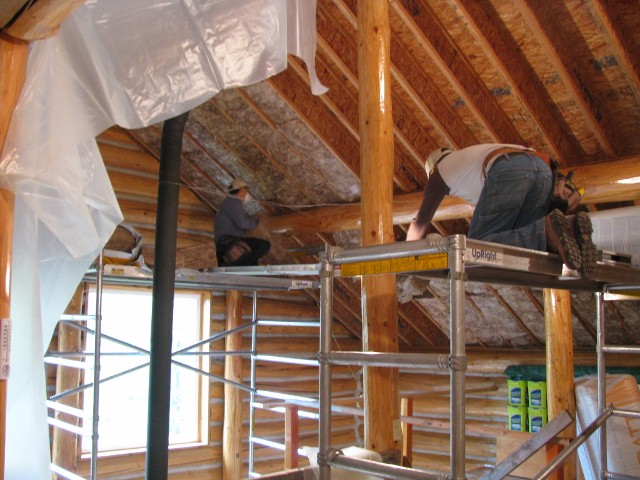

10/20/10 Both guys going at it


10/20/10 Their scaffold system

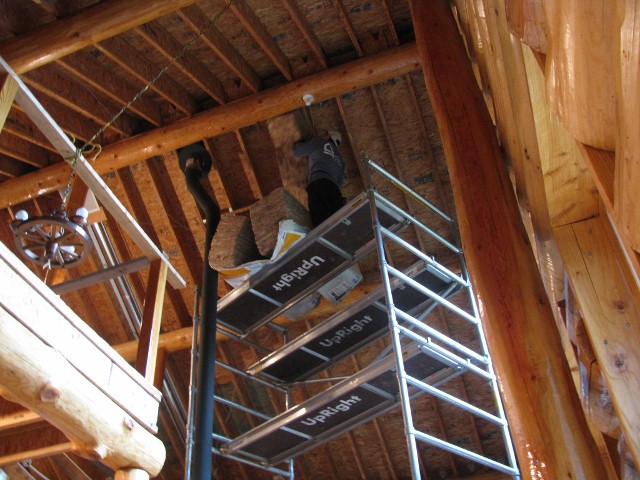

10/20/10 Working at the peak

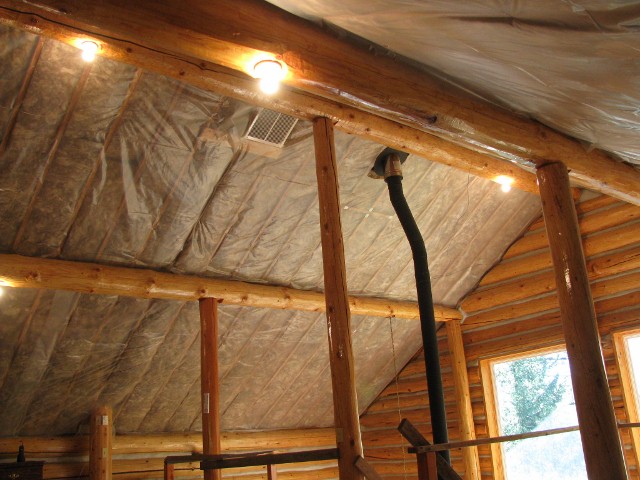

10/20/10 The insulation job is done!

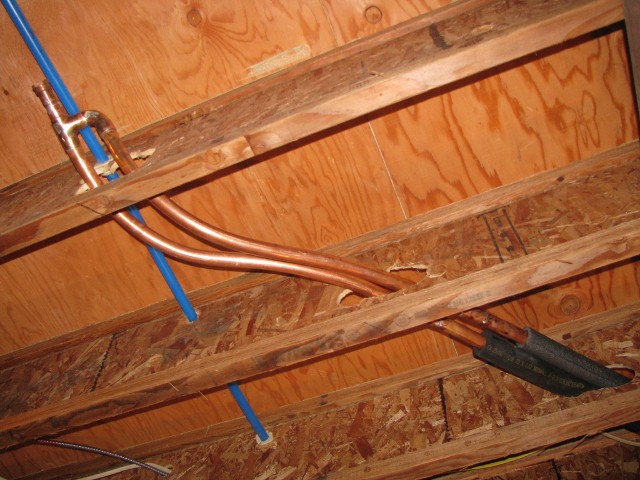

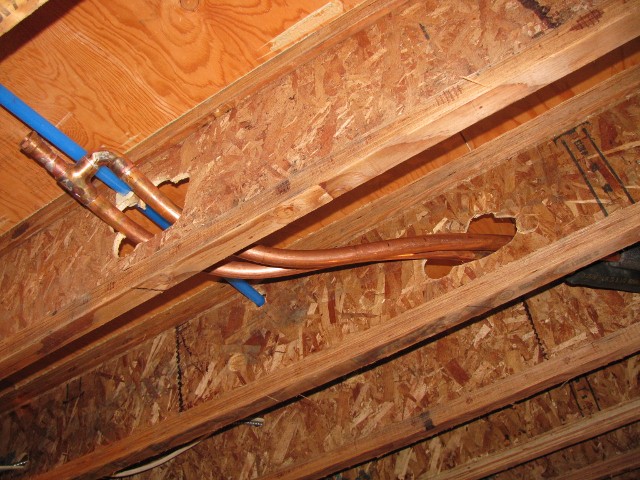

11/23/10 The copper plumbing assembly that will connect to the blue pex pipe. It was tricky to make, tricky to get it in place in the joists, and tricky to connect up to the pipes to the right.


11/23/10 Another view of the copper pipe assembly ready to be connected to the pex pipe.


11/23/10 Paul holding the #4 solid copper wire bent into a template that was used to bend the 1-inch copper pipes in the assembly into the right shapes.

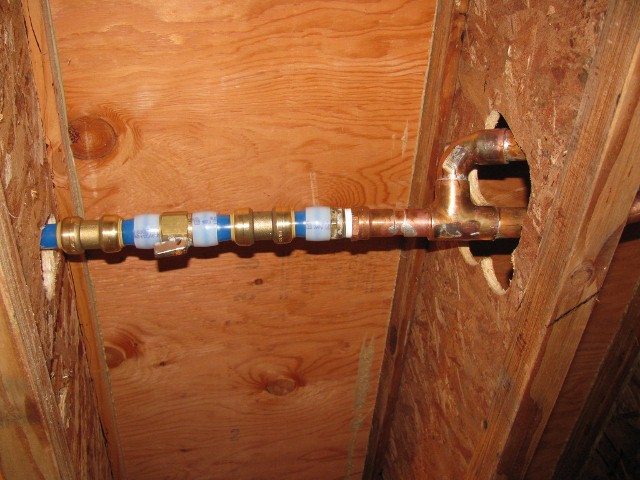

12/1/10 The modified Pex pipe plumbing. Two "Shark Bite" connectors were used to connect salvaged parts of the original plumbing because I don't have any Pex plumbing tools.

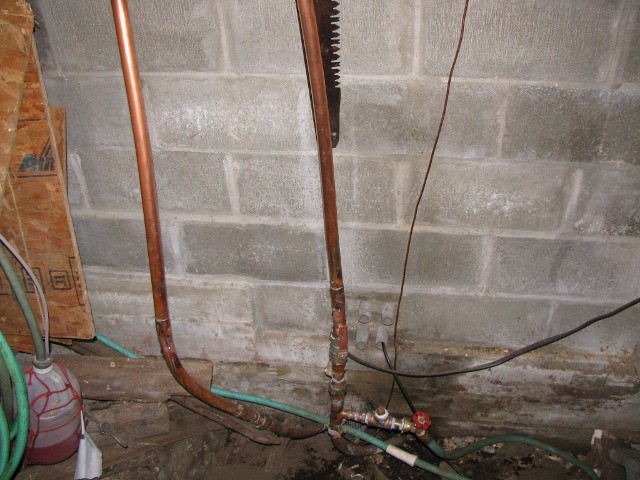

12/1/10 Part of the final modifications to the copper plumbing in the crawl space. The water now loops all the way up into the floor to about the middle of the building. Not shown is a valve in the left hand pipe that is also part of the modifications. It is above and out of the picture on the left hand pipe. It is closed, or partially closed, to provide pressure to the fixtures.
